Non-Small Cell Lung Cancer Stages

After someone is diagnosed with non-small cell lung cancer (NSCLC), doctors will try to figure out if it has spread, and if so, how far. This is called staging or finding the cancer's stage.

How is the stage determined?

This process is called staging. The stage of a cancer describes how much and where the cancer is in the body. It helps determine how best to treat it. Doctors also use a cancer’s stage when talking about survival statistics.

The earliest stage of NSCLC is stage 0 (also called carcinoma in situ, or CIS). Other stages range from I (1) through IV (4). As a rule, the lower the number, the less the cancer has spread. A higher number, such as stage IV, means cancer has spread more. And within a stage, an earlier letter (or number) means a lower stage. Although each person’s cancer experience is unique, cancers with similar stages tend to have a similar outlook and are often treated in much the same way.

The staging system most often used for NSCLC is the American Joint Committee on Cancer (AJCC) TNM system, which is based on 3 key pieces of information:

  • The size and extent of the main tumor (T): How large is the tumor? Has it grown into nearby structures or organs?
  • The spread to nearby lymph nodes (N): Has the cancer spread to nearby lymph nodes? (See image.)
  • The spread (metastasis) to distant sites (M): Has the cancer spread to distant organs, such as the brain, bones, adrenal glands, liver, the pleural fluid, or the other lung?

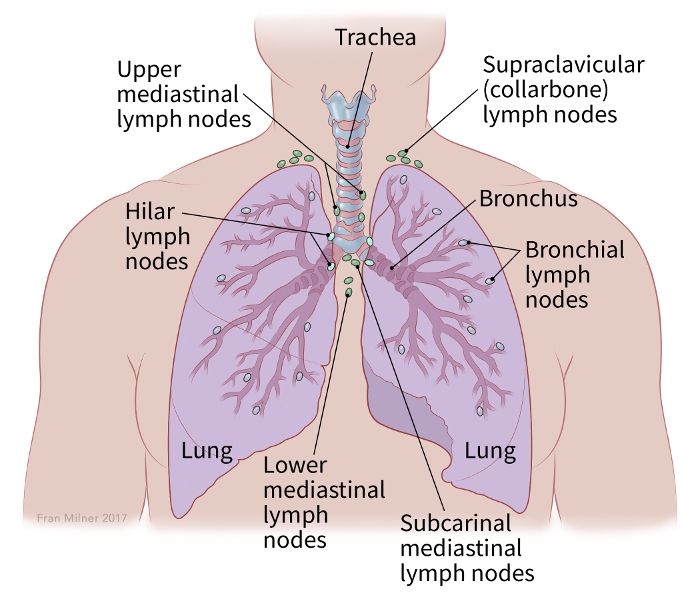

illustration showing the lungs, hilar lymph nodes, upper mediastinal lymph nodes, bronchial lymph nodes, bronchus, trachea, supraclavicular (collarbone) lymph nodes, lower mediastinal lymph nodes and subcarinal mediastinal lymph nodes

Numbers or letters after T, N, and M provide more details about each of these factors. Higher numbers mean the cancer is more advanced. Once a person’s T, N, and M categories have been determined, this information is combined in a process called stage grouping to assign an overall stage. For more information, see Cancer Staging.

The system described below is the most recent version of the AJCC system, effective as of January 2018.

NSCLC is typically given a clinical stage based on the results of a physical exam, biopsy, and imaging tests (as described in Tests for Lung Cancer). If surgery is done, the pathologic stage (also called the surgical stage) is determined by examining tissue removed during the operation.

Staging for NSCLC can be complex, so ask your doctor to explain it to you in a way you understand.

Stages of non-small cell lung cancer

AJCC Stage

Stage grouping

Stage description*

Occult (hidden) cancer

TX

N0

M0

The main tumor can’t be assessed for some reason, or cancer cells are seen in a sample of sputum or other lung fluids, but the cancer isn’t found with other tests, so its location can’t be determined (TX). The cancer is not thought to have spread to nearby lymph nodes (N0) or to distant parts of the body (M0).

0

Tis

N0

M0

The tumor is found only in the top layers of cells lining the air passages, but it has not invaded deeper into other lung tissues (Tis). The cancer has not spread to nearby lymph nodes (N0) or to distant parts of the body (M0).

IA1

T1mi

N0

M0

The cancer is a minimally invasive adenocarcinoma. The tumor is no larger than 3 centimeters (cm) across, and the part that has invaded into deeper lung tissues is no more than ½ cm across. The cancer has not spread to nearby lymph nodes (N0) or to distant parts of the body (M0).

OR

T1a

N0

M0

The tumor is no larger than 1 cm across, it has not reached the membranes that surround the lungs, and it does not affect the main branches of the bronchi (T1a). The cancer has not spread to nearby lymph nodes (N0) or to distant parts of the body (M0).

IA2

T1b

N0

M0

The tumor is larger than 1 cm but no larger than 2 cm across. It has not reached the membranes that surround the lungs, and it does not affect the main branches of the bronchi (T1b). The cancer has not spread to nearby lymph nodes (N0) or to distant parts of the body (M0).

IA3

T1c

N0

M0

The tumor is larger than 2 cm but no larger than 3 cm across. It has not reached the membranes that surround the lungs, and it does not affect the main branches of the bronchi (T1c). The cancer has not spread to nearby lymph nodes (N0) or to distant parts of the body (M0).

IB

T2a

N0

M0

The tumor has one or more of the following features (T2a):

  • It is larger than 3 cm but not larger than 4 cm across.
  • It has grown into a main bronchus, but not the carina (the point where the windpipe splits into the left and right main bronchi) and it is not larger than 4 cm across.
  • It has grown into the visceral pleura (the membranes surrounding the lungs) and is not larger than 4 cm across.
  • It is partially clogging the airways (and is not larger than 4 cm across).

The cancer has not spread to nearby lymph nodes (N0) or to distant parts of the body (M0).

IIA

T2b

N0

M0

The tumor has one or more of the following features (T2b):

  • It is larger than 4 cm but not larger than 5 cm across.
  • It has grown into a main bronchus, but not the carina (the point where the windpipe splits into the left and right main bronchi) and it is larger than 4 cm but not larger than 5 cm across.
  • The tumor has grown into the visceral pleura (the membranes surrounding the lungs) and is larger than 4 cm but not larger than 5 cm across.
  • The tumor is partially clogging the airways (and is larger than 4 cm but not larger than 5 cm across).

The cancer has not spread to nearby lymph nodes (N0) or to distant parts of the body (M0).

























IIB

T1a/T1b/T1c

N1

M0

The tumor is no larger than 3 cm across, has not grown into the membranes that surround the lungs, and does not affect the main branches of the bronchi (T1). It has spread to lymph nodes within the lung and/or around the area where the bronchus enters the lung (peribronchial, hilar, or intrapulmonary lymph nodes). These lymph nodes are on the same side as the cancer (N1). The cancer has not spread to distant parts of the body (M0).

OR

T2a/T2b

N1

M0

The tumor has one or more of the following features (T2):

  • It is larger than 3 cm but not larger than 5 cm across.
  • It has grown into a main bronchus, but not the carina (the point where the windpipe splits into the left and right main bronchi) and it is not larger than 5 cm across.
  • It has grown into the visceral pleura (the membranes surrounding the lungs) and is not larger than 5 cm.
  • It is partially clogging the airways (and is not larger than 5 cm).

The cancer has also spread to lymph nodes within the lung and/or around the area where the bronchus enters the lung (peribronchial, hilar, or intrapulmonary lymph nodes). These lymph nodes are on the same side as the cancer (N1). The cancer has not spread to distant parts of the body (M0).

OR

T3

N0

M0

The tumor has one or more of the following features (T3):

  • It is larger than 5 cm but not larger than 7 cm across.
  • It has grown into the chest wall, the inner lining of the chest wall (parietal pleura), the phrenic nerve, or membranes of the sac surrounding the heart (parietal pericardium).
  • There are 2 or more separate tumor nodules in the same lobe of a lung.

The cancer has not spread to nearby lymph nodes (N0) or distant parts of the body (M0).











  IIIA

T1a/T1b/T1c

N2

M0

The cancer is no larger than 3 cm across, has not grown into the membranes that surround the lungs, and does not affect the main branches of the bronchi (T1). The cancer has spread to lymph nodes below the carina (the point where the windpipe splits into the left and right bronchi) or in the space between the lungs (mediastinum). These lymph nodes are on the same side as the main lung tumor (N2). The cancer has not spread to distant parts of the body (M0).

OR

T2a/T2b

N2

M0

The tumor has one or more of the following features (T2):

  • It is larger than 3 cm but not larger than 5 cm across.
  • It has grown into a main bronchus, but not the carina (the point where the windpipe splits into the left and right main bronchi) and it is not larger than 5 cm across.
  • It has grown into the visceral pleura (the membranes surrounding the lungs) and is not larger than 5 cm.
  • It is partially clogging the airways (and is not larger than 5 cm).

The cancer has spread to lymph nodes below the carina (the point where the windpipe splits into the left and right bronchi) or in the space between the lungs (mediastinum). These lymph nodes are on the same side as the main lung tumor (N2). The cancer has not spread to distant parts of the body (M0).

OR

T3

N1

M0

The tumor has one or more of the following features (T3):

  • It is larger than 5 cm but not larger than 7 cm across.
  • It has grown into the chest wall, the inner lining of the chest wall (parietal pleura), the phrenic nerve, or membranes of the sac surrounding the heart (parietal pericardium).
  • There are 2 or more separate tumor nodules in the same lobe of a lung.

The cancer has also spread to lymph nodes within the lung and/or around the area where the bronchus enters the lung (peribronchial, hilar, and intrapulmonary lymph nodes). These lymph nodes are on the same side as the cancer (N1). The cancer has not spread to distant parts of the body (M0).

OR

T4

N0 or N1

M0

The tumor has one or more of the following features (T4):

  • It is larger than 7 cm across.
  • It has grown into the space between the lungs (mediastinum), the heart, the large blood vessels near the heart (such as the aorta), the windpipe (trachea), the tube connecting the throat to the stomach (esophagus), the thin muscle separating the chest from the abdomen (diaphragm), the backbone, or the carina.
  • There are 2 or more separate tumor nodules in different lobes of the same side of the lung.

The cancer may or may not have spread to lymph nodes within the lung and/or around the area where the bronchus enters the lung (peribronchial, hilar, or intrapulmonary lymph nodes). Any affected lymph nodes are on the same side as the cancer (N0 or N1). The cancer has not spread to distant parts of the body (M0).





























 IIIB



T1a/T1b/T1c

N3

M0

The cancer is no larger than 3 cm across, has not grown into the membranes that surround the lungs, and does not affect the main branches of the bronchi (T1). The cancer has spread to lymph nodes above the collarbone on either side of the body, and/or has spread to hilar or mediastinal lymph nodes on the other side of the body from the main tumor (N3). The cancer has not spread to distant parts of the body (M0).

OR

T2a/T2b

N3

M0

The tumor has one or more of the following features (T2):

  • It is larger than 3 cm but not larger than 5 cm across.
  • It has grown into a main bronchus, but not the carina (the point where the windpipe splits into the left and right main bronchi) and it is not larger than 5 cm across.
  • It has grown into the visceral pleura (the membranes surrounding the lungs) and is not larger than 5 cm.
  • It is partially clogging the airways (and is not larger than 5 cm).

The cancer has spread to lymph nodes above the collarbone on either side of the body, and/or has spread to hilar or mediastinal lymph nodes on the other side of the body from the main tumor (N3). The cancer has not spread to distant parts of the body (M0).

OR

T3

N2

M0

The tumor has one or more of the following features (T3):

  • It is larger than 5 cm but not larger than 7 cm across.
  • It has grown into the chest wall, the inner lining of the chest wall (parietal pleura), the phrenic nerve, or membranes of the sac surrounding the heart (parietal pericardium).
  • There are 2 or more separate tumor nodules in the same lobe of a lung.

The cancer has spread to lymph nodes below the carina (the point where the windpipe splits into the left and right bronchi) or in the space between the lungs (mediastinum). These lymph nodes are on the same side as the main lung tumor (N2). The cancer has not spread to distant parts of the body (M0).

OR

T4

N2

M0

The tumor has one or more of the following features (T4):

  • It is larger than 7 cm across.
  • It has grown into the space between the lungs (mediastinum), the heart, the large blood vessels near the heart (such as the aorta), the windpipe (trachea), the tube connecting the throat to the stomach (esophagus), the thin muscle separating the chest from the abdomen (diaphragm), the backbone, or the carina (the point where the windpipe splits into the left and right main bronchi).
  • There are 2 or more separate tumor nodules in different lobes of the same side of the lung.

The cancer has spread to lymph nodes below the carina (the point where the windpipe splits into the left and right bronchi) or in the space between the lungs (mediastinum). These lymph nodes are on the same side as the main lung tumor (N2). The cancer has not spread to distant parts of the body (M0).









 IIIC

T3

N3

M0

The tumor has one or more of the following features (T3):

  • It is larger than 5 cm but not larger than 7 cm across.
  • It has grown into the chest wall, the inner lining of the chest wall (parietal pleura), the phrenic nerve, or membranes of the sac surrounding the heart (parietal pericardium).
  • There are 2 or more separate tumor nodules in the same lobe of a lung.

The cancer has spread to lymph nodes above the collarbone on either side of the body, and/or has spread to hilar or mediastinal lymph nodes on the other side of the body from the main tumor (N3). The cancer has not spread to distant parts of the body (M0).

OR

T4

N3

M0

The tumor has one or more of the following features (T4):

  • It is larger than 7 cm across.
  • It has grown into the space between the lungs (mediastinum), the heart, the large blood vessels near the heart (such as the aorta), the windpipe (trachea), the tube connecting the throat to the stomach (esophagus), the thin muscle separating the chest from the abdomen (diaphragm), the backbone (spine), or the carina (the point where the windpipe splits into the left and right main bronchi).
  • There are 2 or more separate tumor nodules in different lobes of the same side of the lung.

The cancer has spread to lymph nodes above the collarbone on either side of the body, and/or has spread to hilar or mediastinal lymph nodes on the other side of the body from the main tumor (N3). The cancer has not spread to distant parts of the body (M0).







IVA

Any T

Any N

M1a

The cancer can be any size and may or may not have grown into nearby structures (any T). It may or may not have reached nearby lymph nodes (any N). In addition, any of the following is true (M1a):

  • The cancer has spread to the other lung.
  • The cancer has spread to either the pleura (lining around the lungs) or pericardium (lining around the heart).
  • Cancer cells are found in the fluid around the lung (called a malignant pleural effusion).
  • Cancer cells are found in the fluid around the heart (called a malignant pericardial effusion).

OR

Any T

Any N

M1b

The cancer can be any size and may or may not have grown into nearby structures (any T). It may or may not have reached nearby lymph nodes (any N). It has spread as a single tumor outside of the chest, such as to a distant lymph node or an organ such as the liver, bones, or brain (M1b).

IVB

Any T

Any N

M1c

The cancer can be any size and may or may not have grown into nearby structures (any T). It may or may not have reached nearby lymph nodes (any N). It has spread as more than one tumor outside the chest, such as to distant lymph nodes and/or to other organs such as the liver, bones, or brain (M1c).

*The following additional categories are not listed in the table above:

  • T0: There is no evidence of a primary tumor.
  • NX: Nearby lymph nodes cannot be assessed due to lack of information.

The American Cancer Society medical and editorial content team

Our team is made up of doctors and oncology certified nurses with deep knowledge of cancer care as well as editors and translators with extensive experience in medical writing.

American Joint Committee on Cancer. Lung. In: AJCC Cancer Staging Manual. 8th ed. New York, NY: Springer; 2017: 431-456.
